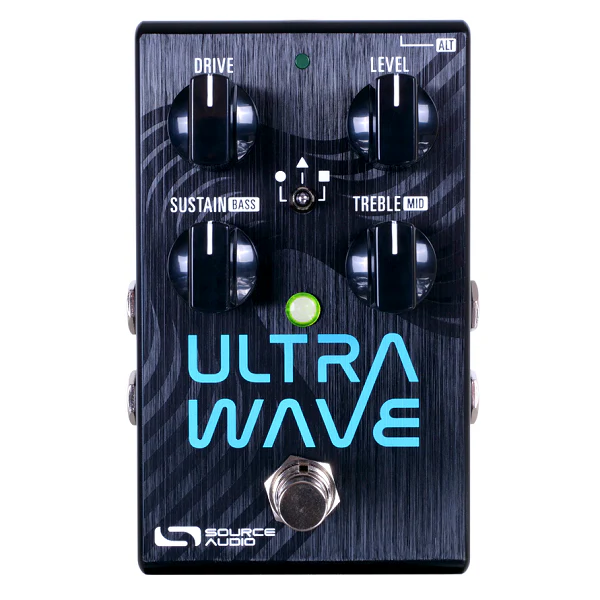

Source Audio Ultrawave

The Ultrawave Multiband Processor embarks on a pioneering journey into the advanced potential of overdrive and tremolo, exploring a brave new universe of sounds yet unheard. At the Ultrawave’s core is a dynamic and multi-dimensional approach known as multiband processing. This process splits the frequency spectrum of a guitar, bass, or synthesizer into multiple, discrete frequency bands and equips each band with its own array of adjustable parameters.

37 Different Band Splitting Options
Band Splitting options including single, 2, 3, 4, 8, and 10bands. Each band splitting option includes several sub-sets with different band splitting frequency points.

44 Different Distortion Types
Choose from distortion/overdrive/fuzz types that include Tube,Diod   e, Foldback, Negative Flip Diode, Octave Up, and more

Dual Channel Compressor/Expander
Compressor features Input Gain, Threshold, Ratio, Attack, Release, and Output Gain controls with a detailed graphic monitor. Use the dual channel capabilities to isolate compression to specific frequencies. Place the compressor/expander before or after the overdrive module.

Multiband Tremolo
Use the Multiband Tremolo's different start time options to create sequencer or arpeggiator type effects. Use the Band Phase Offset control to set up 2, 3, 4, 5, 6, 8 or 10 beat patterns.

Stereo Ins and Outs
Create two entirely different presets and run them in series, parallel or run each to aseparate output. Stereo options also apply to the Multiband Tremolo - use the Channel 1/Channel 2 Syncoptions or the Phase Offset control to create stereo ping-pong, tremolo effects.

Detailed LFO Controls
Use the LFO module to control the Ultrawave's Tremolo, Morphing or Ring Modfeatures. Choose between a standard Sine Wave or use the Attack/Release controls to create highly customized LFO shapes.

Sound Morphing
Change from one sound to another with an expression pedal, envelope follower or LFO.

8 Band Graphic Equalizer

Adjustable Noise Gate

Assignable Knobs
Reassign all four of the Ultrawave's knobs to the parameters most useful for making quick, on-stage changes. Save a different set of knob assignments for every preset.

External Expression Pedal Control
Make simultaneous, on-the-fly changes of up to three parameters with an external expression pedal.

6 Toggle Switch Accessible Presets
Quickly access up to 6 pedal presets with the Ultrawave's toggleswitch.

Create, Save, and Share Presets with the Neuro Desktop Editor
Use the Neuro Desktop Editor to quickly download presets created by other Ultrawave owners or create and publish your own presets and make them accessible to entire Neuro Community.

Neuro Mobile App. (for iOS or Android)
Connect your mobile device directly to the pedal for access an extended set of adjustable parameters. Save and download customized effects to the pedal and share them with other One Series owners. Connector cable included with pedal.

Universal Bypass
Select either analog buffered or relay based True Bypass.

MIDI Capable
Connect the Ultrawave to the Source Audio Neuro Hub and access up to 128 presets with MIDI Program Change (PC) messages. Control many of the pedal’s parameters with MIDI Continuous Controller (CC) messages or assign LFO modulation speed with MIDI Clock.

USB Port
Class compliant USB-MIDI allows the Ultrawave to work as a plug-and-play device with recording software running on Mac and Windows. The USB port offers connectivity to the Neuro Desktop Editor providing access to deep editing possibilities and pedal firmware updates.

Brushed anodized aluminum housing
Dimensions: L: 4.5 in./11.4cm x W: 2.75 in./7cm x H: 2 in./5.1cm(including knobs) 9V DC power supply included.

Includes 9v DC power supply
300mA / Negative tip / Pedal draws 150mA.
