The Story
The PreSonus CDL12 is the result of years of research and development, combining the best attributes of point source and line array technology into a unique patent-pending design. Based on the Constant-Directivity Two-Way Loudspeaker System design presented at the 143rd AES Convention in New York by Hugh Sarvis and Don Keele, the CDL12 radiates a highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis. The result is clear, articulate speech intelligibility and natural music reproduction.

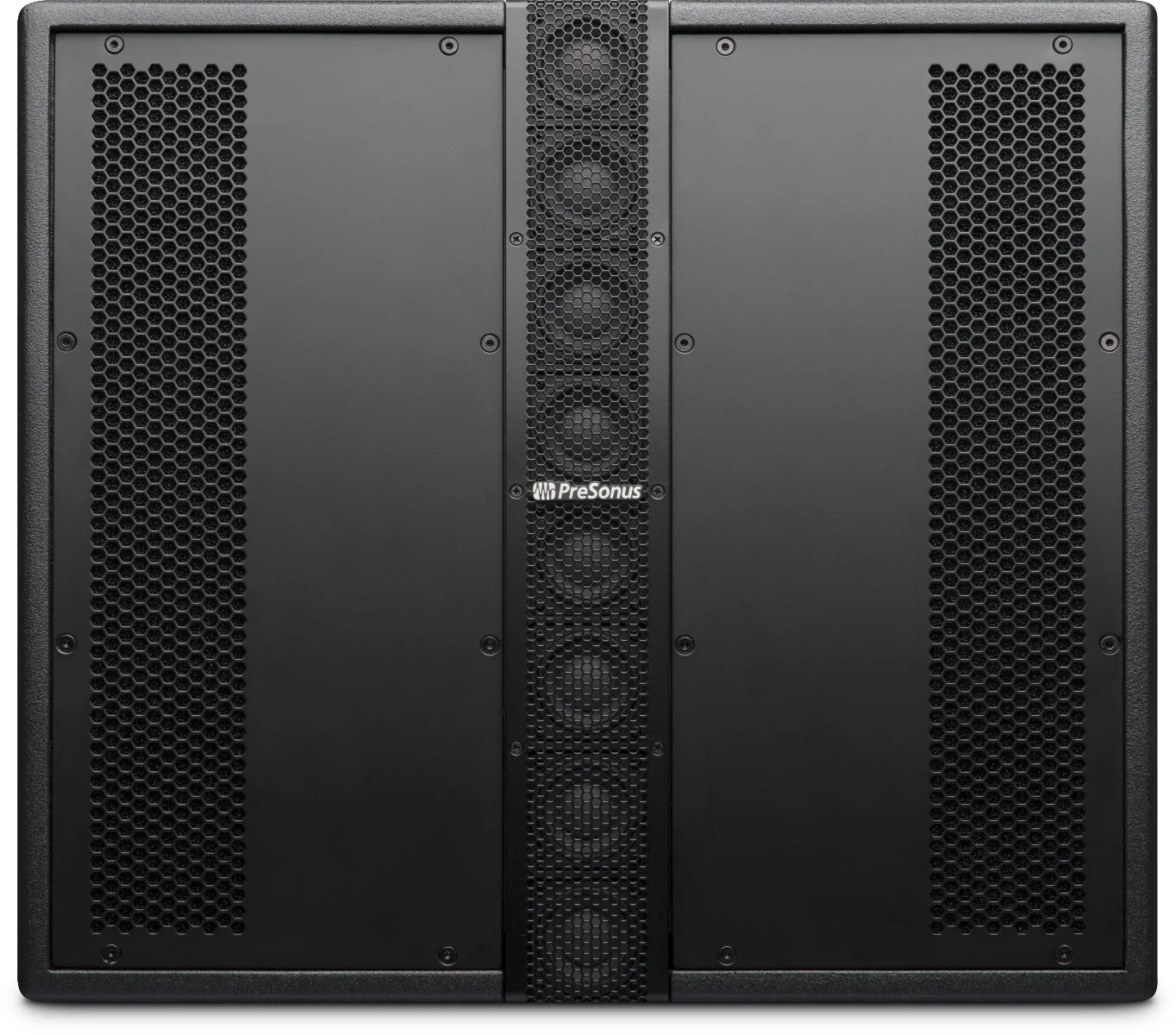

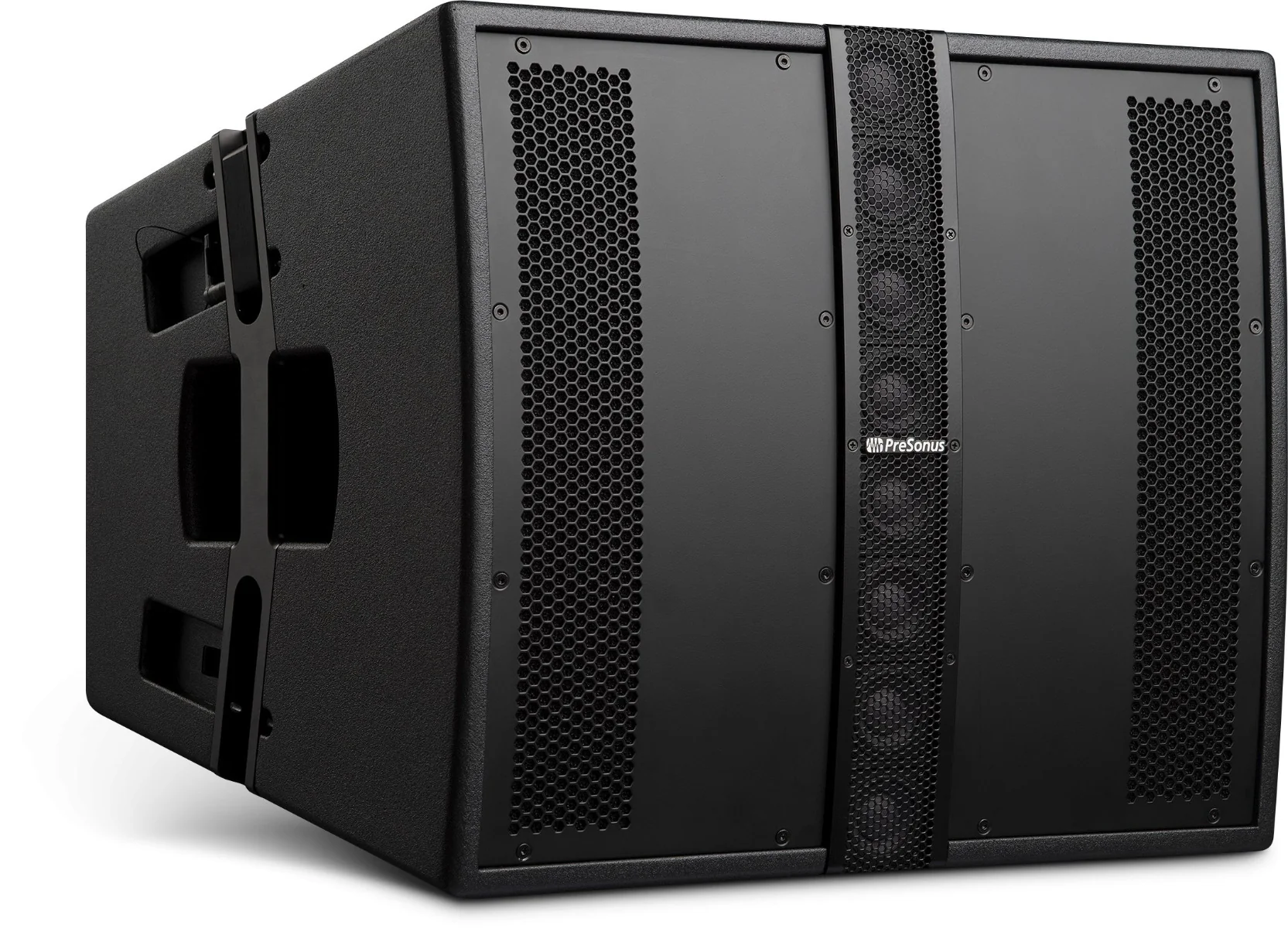

Each CDL12 consists of eight 2-inch drivers aligned in a segmented circular-arc high-frequency array centered in front of a 12-inch woofer. The output of the low-frequency driver travels from the same acoustic axis as the high-frequency array so that the pattern always radiates from the center of the CDL12. This is true whether the CDL12 is used individually on a tripod speaker stand or as part of an acoustically coupled vertical array with up to six enclosures. Because of this, the CDL12 avoids the near-field anomalies that can interfere with the sound quality of a traditional line array. This makes the CDL12 ideally suited for a broader range of venue sizes, creating a far-field response almost immediately as the sound is projected from the center of the enclosure.
Key Features:
- Hybrid Point Source / Line Array Constant Directivity Loudspeaker
- Incorporates eight 2-inch high-frequency drivers centred in front of a 12-inch woofer
- 2-inch x 8 HF, 20-degree driver array with 1-inch voice coils
- Custom 12-inch LF driver with 2.5-inch voice coil
- Nominal Coverage (-6dB): Truly symmetrical 120° x 20° per enclosure
- 420Hz crossover frequency minimises comb filtering
- Dante enabled with accessible system tuning via WorxControl software
- Integrated rigging hardware that can accommodate up to six enclosures when flown
- Class D amplifier - 2000W peak, 1000W program, 500W RMS
- Maximum Peak SPL: 131 dB
- On-board DSP presets Compression, Limiting, Delay, 8-band EQ
- Robust Neutrik PowerCon In and Out connectivity
- Enclosure: 15mm Eucalyptus plywood
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The PreSonus CDL12 is the result of years of research and development, combining the best attributes of point source and line array technology into a unique patent-pending design. Based on the Constant-Directivity Two-Way Loudspeaker System design presented at the 143rd AES Convention in New York by Hugh Sarvis and Don Keele, the CDL12 radiates a highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis. The result is clear, articulate speech intelligibility and natural music reproduction.
Each CDL12 consists of eight 2-inch drivers aligned in a segmented circular-arc high-frequency array centered in front of a 12-inch woofer. The output of the low-frequency driver travels from the same acoustic axis as the high-frequency array so that the pattern always radiates from the center of the CDL12. This is true whether the CDL12 is used individually on a tripod speaker stand or as part of an acoustically coupled vertical array with up to six enclosures. Because of this, the CDL12 avoids the near-field anomalies that can interfere with the sound quality of a traditional line array. This makes the CDL12 ideally suited for a broader range of venue sizes, creating a far-field response almost immediately as the sound is projected from the center of the enclosure.
Key Features:
- Hybrid Point Source / Line Array Constant Directivity Loudspeaker
- Incorporates eight 2-inch high-frequency drivers centred in front of a 12-inch woofer
- 2-inch x 8 HF, 20-degree driver array with 1-inch voice coils
- Custom 12-inch LF driver with 2.5-inch voice coil
- Nominal Coverage (-6dB): Truly symmetrical 120° x 20° per enclosure
- 420Hz crossover frequency minimises comb filtering
- Dante enabled with accessible system tuning via WorxControl software
- Integrated rigging hardware that can accommodate up to six enclosures when flown
- Class D amplifier - 2000W peak, 1000W program, 500W RMS
- Maximum Peak SPL: 131 dB
- On-board DSP presets Compression, Limiting, Delay, 8-band EQ
- Robust Neutrik PowerCon In and Out connectivity
- Enclosure: 15mm Eucalyptus plywood
