DOEPFER A-100P9 Eurorack Suitcase

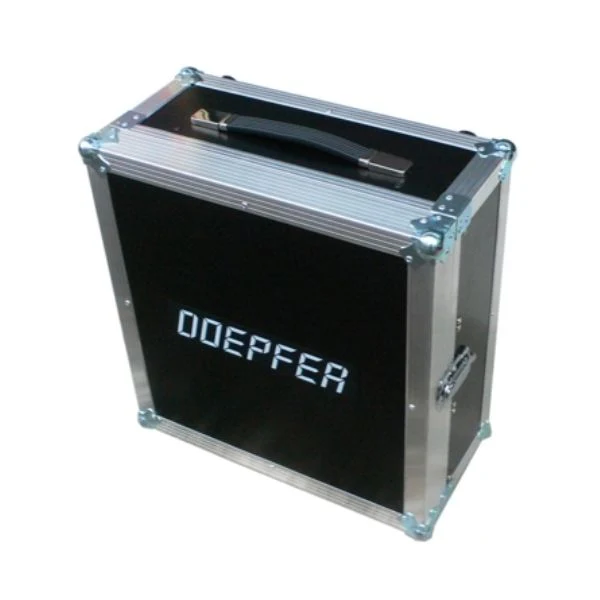

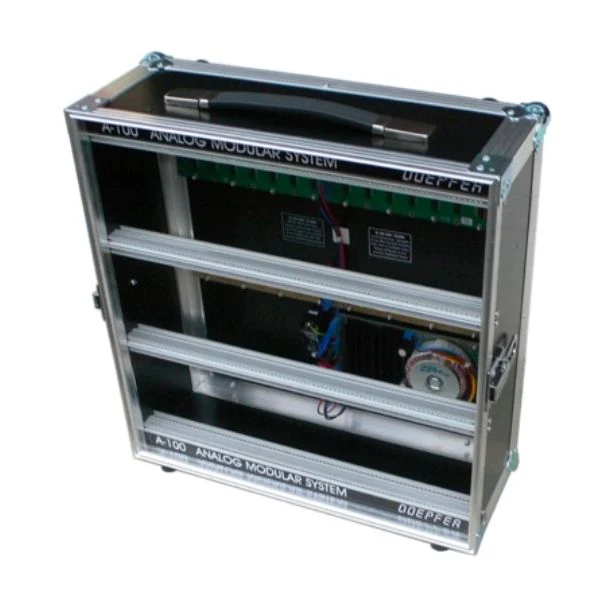

For mobile use, portable suitcase versions of the DOEPFER A-100 cases are also available. Inside the removable cover there is sufficient space to carry the system completely patched or to move patch chords and the power cable (valid only for original DOEPFER A-100 patch cables, for cables from other manufacturers with larger jack plugs there might be not sufficient space, actually about 50 mm space are available). The  DOEPFER A-100 suitcases can be used vertical or horizontal, provided that a suitable support is used (not available from us, the mains inlet and the power switch have to remain accessible). The suitcases are equipped with 4 rubber feet on the bottom and rear side and a handle on the top. The DOEPFER A-100 suitcases are made of black wood with aluminium extrusions with the rail construction fixed to the other parts of the suitcase.

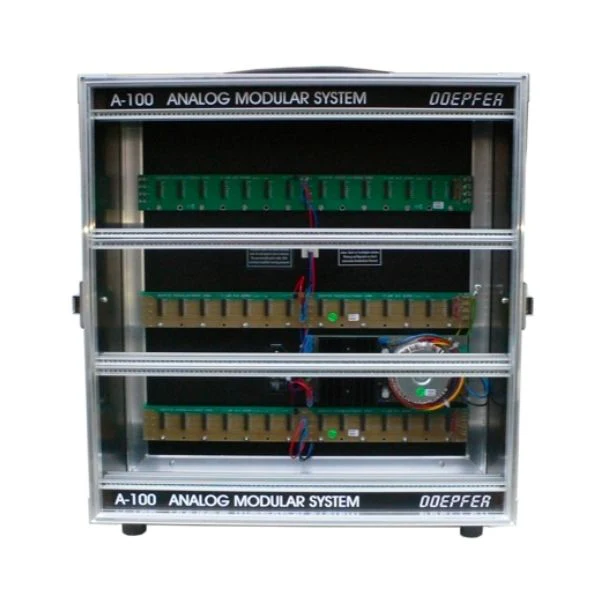

This an enlarged version of the A-100 suitcase with 9 U or three rows of modules. As only one power supply is required this is the most economic version of the A-100 suitcase. Apart from that the 9U version is identical to the 6U version.

Key Features:

• Eurorack chassis with 1 power supply (A-100PSU3) and 3 bus boards
• 252HP of useable width across 3 tiers, 100mm depth
• Outside dimensions (with front cover attached): 18.3" x 19.1" x 9.3"
