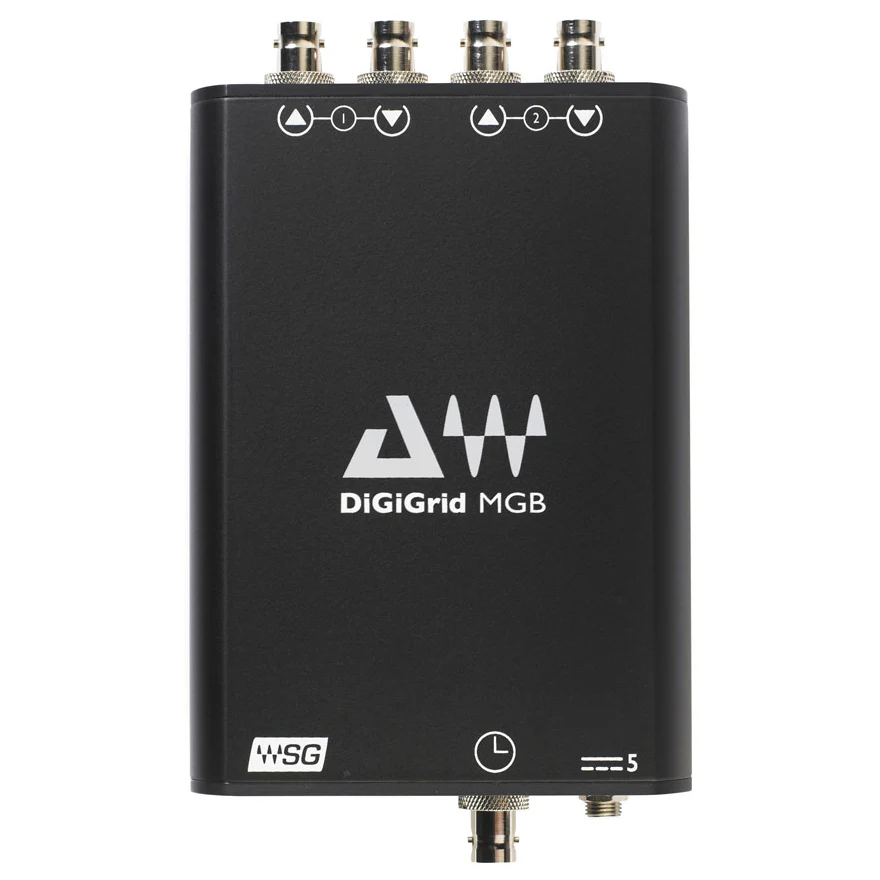

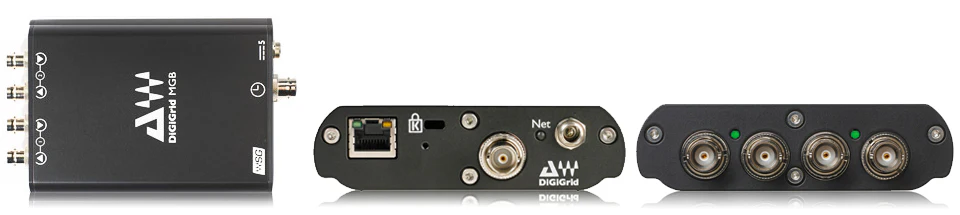

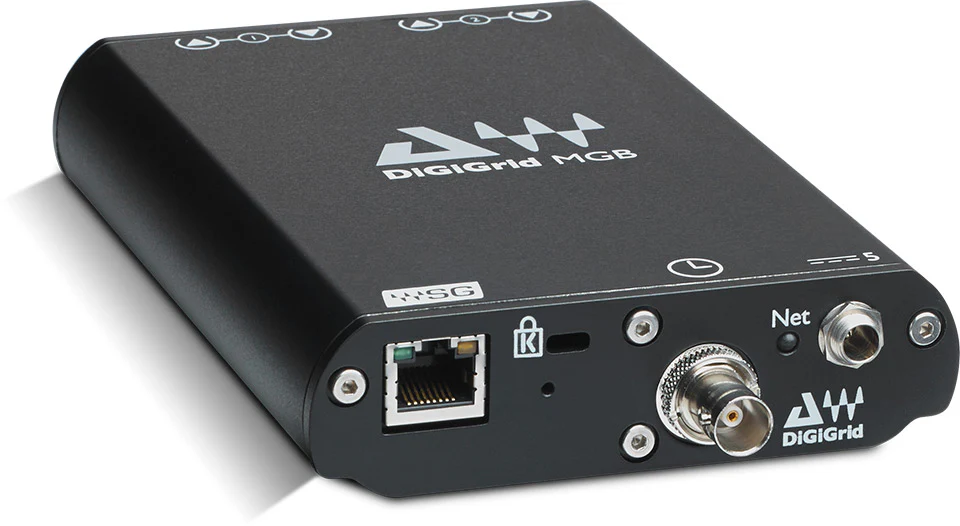

DiGiGrid MGB

Compact and portable, the DiGiGrid MGB interface lets you plug any coaxial MADI-enabled device into the power of the Waves SoundGrid networking and processing platform. Record, process and playback up to 128 audio channels, using literally hundreds of Waves and third-party plugins, with super-low latency, clocking in at only 0.8 milliseconds! You can even record to two computers simultaneously: One for virtual soundcheck, the other for backup. So if you’re on the tour bus, in your hotel room, at the airport – wherever – you can quickly and conveniently setup your next show, using only your laptop.

With a DiGiGrid MGB MADI-to-SoundGrid interface, real-time low-latency networking and processing is only an Ethernet cable away.

Key features:

• MADI Coaxial I/O (BNC)
• Supported sample rates: 44.1, 48, 88.2, 96 kHz
• 112/128 channel I/O @ 48kHz
• 56/64 channel I/O @ 96kHz
• 56 and 64 channel mode support
• Supports double wire (48k frame) and single wire (96k frame) @ 96kHz
• Clock Synchronization via Word Clock input, MADI (Port 1 or 2), SoundGrid (Sync over Ethernet), Internal
• 1 SoundGrid RJ45 Ethernet port
• Reset switch
• DiGiCo Stage Rack channel 57 support
